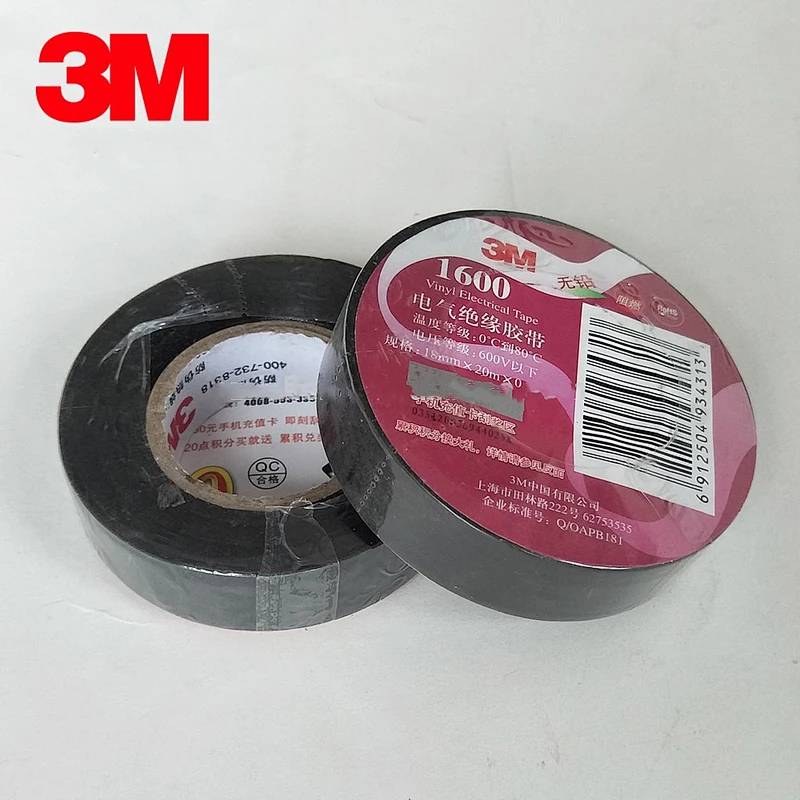

heat resistance electric tape 3M brand 1600 lead free insulation tape

3M 1600 flame retardant PVC electrical insulation tape

material:PVC  Lead-free
size:0.15mm×18mm×20m

color:red yellow green blue white  black

Product description:

Practical PVC insulating tape, authorized by UL. The normal working temperature is 80°C, and when the temperature low to 0°C, it can working normally. It has high wear resistance,

Moisture resistance and chemical resistance.

-- 3M anti-counterfeiting embossing

-- UL authorized insulating tape, (product category OANZ),UL authorization NO. E129200

--anti-flaming

--PVC base

--sensitive rubber based adhesives

--do not corrode conductor

Application Scope:

The major insulation of the wire and cable connector, and the voltage is below 600V.

The protective cover of the high-voltage cable connector.

The blinding of the wire and cable.

Technical parameters:

--temperature:80°C

--color: red/yellow/green/blue/white/black

--breaking strength:161bs/in

--Maximum tensile rate:150%

--FR: pass UL510

--Viscosity to the steel:18oz./in

--Viscosity to the base: 18oz./in

--Voltage: ≤600v

--dielectric strength: >39.37kv/mm

--Dielectric Resistance:>10¹²Ω
