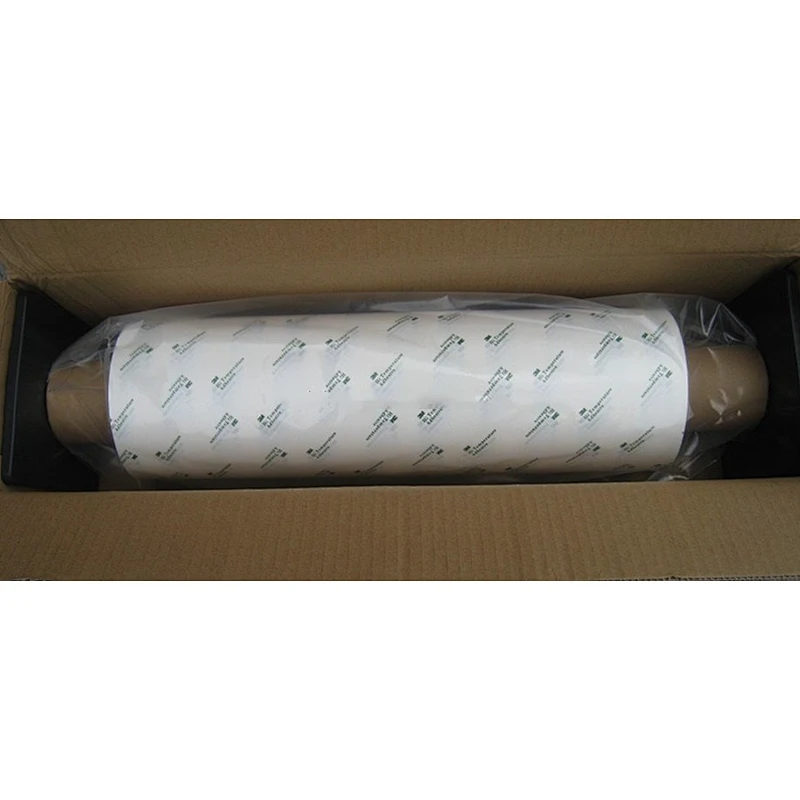

3M High Temperature 100HTL Adhesive Transfer Tapes 3M 9077

Model NO.: 9077
Price:: US $ 490.00-500.00 / roll
Delivery: EXW
Minimum order quantity: 1 roll
Supply Ability: 100 roll / Month
Country of Origin: China
Stock Time: 7 Days

Material Type: Paper
Material: non-woven
Application: electronics
Type: Heat Transfer
Temperature: High
Brand Name: 3M
Model Number: 9077
color: clear

Quantity:

Product Description
Basic Information

material	non-woven
adhesive	double coated acrylic adhesive
color	clear
thickness	0.05mm
short term temperature	Adhesive: 500°F (260°C) release Liner: 500°F (260°C)
long term temperature	Adhesive: 300°F (150°C) Liner: N/A
size	500MM*100M

3M High Temperature 100HTL Adhesive Transfer Tapes utilize a high performance and low outgassing adhesive system having excellent heat resistance in high temperature environments. These adhesive systems have excellent holding power and much higher adhesion strength at high temperatures than typical pressure sensitive adhesive tapes.

3M High Temperature 100HTL Adhesive Transfer Tape 9077 is a double coated non-woven adhesive tape with improved die-cut and converting performance.

Features

1. High temperature release liner that is able to survive from a typical lead-free solder reflow process having a peak temperature up to 500°F (260°c).
2. Ideal for Flexible Printed Circuit (FPC) attachments in many areas of electronics subjected to high temperature processing and operating environments.
3. Releasable after lead-free solder reflow.
4. High adhesion, excellent holding power and low outgas.
